DCF77: How Radio-Controlled Clocks Work in Europe
Accurate time can be almost invisible. A radio-controlled wall clock corrects itself quietly in the background by receiving an official time signal. Across much of Europe, that signal is DCF77.
This guide explains what DCF77 is, how it works, where it can be received and what to check when a radio-controlled clock does not synchronise as expected.
What is DCF77?
DCF77 is Germany’s long-wave time signal, transmitted from Mainflingen, near Frankfurt am Main. It operates continuously on a carrier frequency of 77.5 kHz and disseminates the legal time realised by the German national metrology institute, the Physikalisch-Technische Bundesanstalt (PTB).
The carrier frequency is derived from PTB’s atomic time standards. According to PTB, commercial DCF77 receivers can normally use the signal within a radius of roughly 2,000 kilometres under suitable conditions.
How does a radio-controlled clock use DCF77?
A compatible movement contains a radio receiver. During its reception cycle, it listens for the DCF77 signal and decodes the transmitted time information.
During each minute, the signal carries coded information including the minute, hour, calendar date, day of the week, month and year. Once the movement has received and correctly decoded the signal, it can correct the displayed time automatically.
What happens when daylight saving time changes?
The DCF77 time code also contains the information needed to distinguish between Central European Time and Central European Summer Time. When reception is successful, a compatible movement can therefore handle the seasonal time change automatically.
This is one of the main practical advantages of a radio-controlled clock: under suitable reception conditions, there is no need to reset the clock manually when the clocks change.
Looking for this feature in a design wall clock? Selected CalleaDesign models offer radio control as an option. See Mike with optional radio-controlled movement.
Why is DCF77 so precise?
The DCF77 carrier frequency is derived from PTB’s atomic time standards. For a domestic wall clock, the important point is not laboratory-level frequency accuracy but the ability to periodically correct the displayed time against an official reference.
The final accuracy experienced by the user also depends on the movement itself and on whether the signal has been received and decoded correctly.
Where can DCF77 be received?
DCF77 was designed for time dissemination in Germany, but its reach extends across a large part of Europe. PTB describes a practical reception area of approximately 2,000 km for commercial receivers.
Propagation changes with distance and atmospheric conditions. PTB estimates a maximum single-hop reach of about 1,900 km during the day and around 2,100 km at night. Beyond the 2,000 km area, reliable reception is possible only in individual cases.
In practice, reception can be very good in Central Europe and can also work in countries farther from Germany, including parts of Italy. Distance alone, however, does not determine whether a clock will synchronise successfully.
Why does a radio-controlled clock sometimes fail to synchronise?
A weak or disturbed signal does not automatically mean that the clock is faulty. Reception can be influenced by the environment around the clock.
- Electromagnetic interference: nearby electronic equipment and electrical systems can disturb reception.
- Building structure: thick walls, reinforced structures, metal surfaces and underground locations can weaken the signal.
- Geographical position: reception generally becomes less predictable as the distance from Mainflingen increases.
- Propagation conditions: the balance between ground wave and sky wave changes with distance and over the course of the day.
A clock can therefore synchronise well in one position and struggle in another only a few metres away.
What to do if the clock does not receive DCF77
- Use a fresh battery. Stable power is important during the synchronisation cycle.
- Move the clock away from electronic equipment. A temporary test in another position can help identify local interference.
- Try a less shielded position. Thick walls and metal structures can make reception more difficult.
- Allow enough time for a complete reception cycle. A radio-controlled clock does not necessarily synchronise immediately after the battery is inserted.
- Do not force the hands manually. If needed, see our guide on why clock hands should not normally be moved by hand.
If the clock still does not synchronise after these checks, use the Wall Clock Troubleshooting Guide to rule out battery, hand or installation issues.
Radio-controlled or standard quartz?
A conventional quartz movement works independently of radio reception and normally needs occasional manual correction. A DCF77-compatible movement adds automatic synchronisation and, when reception is reliable, automatic seasonal time changes.
The right choice depends on the installation and on whether automatic correction is important. See our comparison of radio-controlled and quartz wall clocks.
DCF77 and other radio time signals
DCF77 is one of several terrestrial radio time services used around the world. Other regions use different transmitters and frequencies, so a receiver designed only for DCF77 is not automatically compatible everywhere.
- WWVB is used in North America.
- JJY is used in Japan.
- MSF is the British time signal transmitted from Anthorn in the United Kingdom.
- BPC is a time-signal service used in China.
DCF77 in a CalleaDesign wall clock
For CalleaDesign, the movement should support the object without becoming its visual centre. Selected models can be equipped with a radio-controlled movement for European use, combining automatic time synchronisation with the same quiet visual language as the rest of the collection.

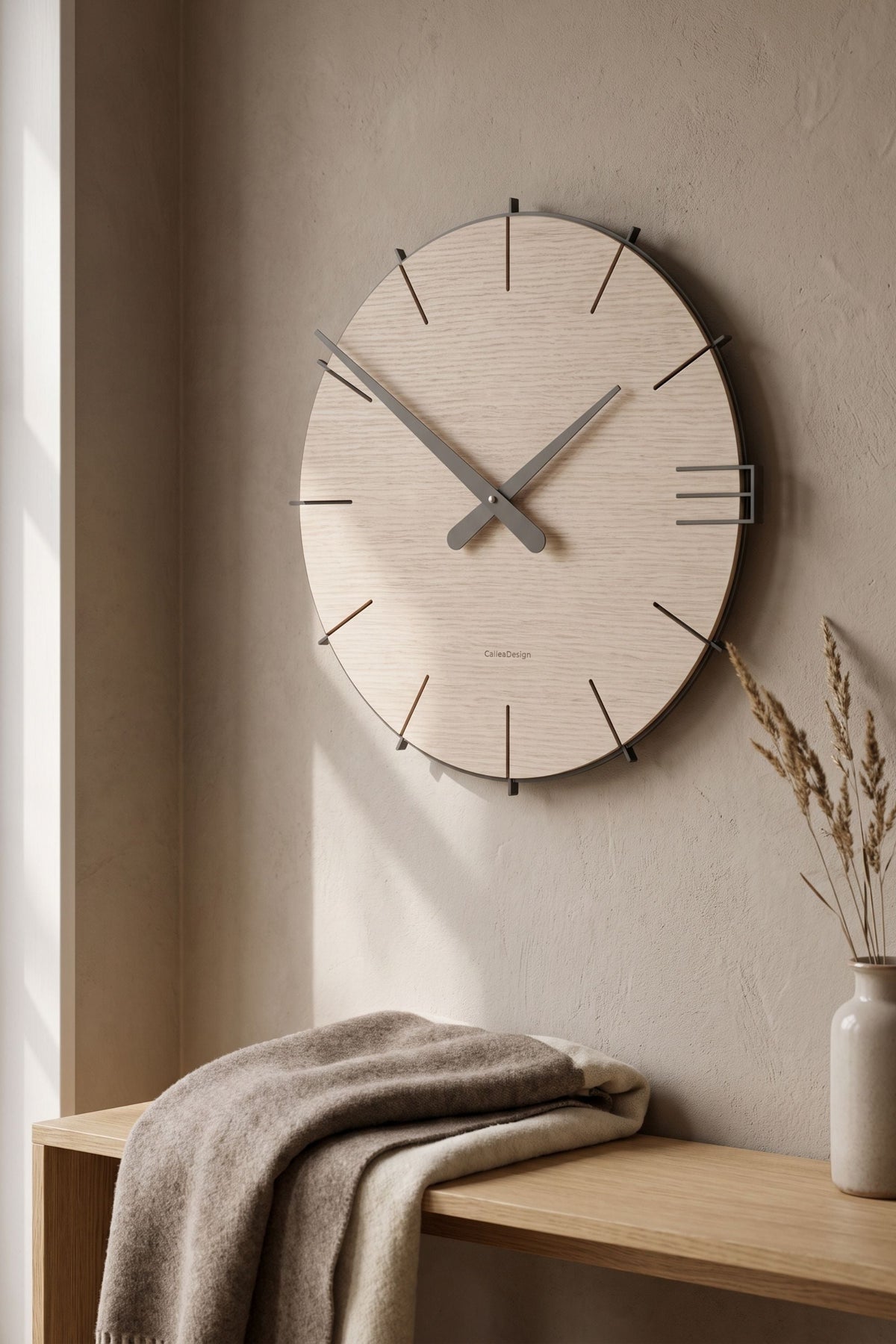

For example, Mike is available with an optional radio-controlled movement.
Explore CalleaDesign wall clocks
Frequently asked questions
Does DCF77 need Wi-Fi?
No. DCF77 is a terrestrial long-wave radio signal. A compatible clock does not need Wi-Fi or an internet connection to receive it.
Can DCF77 work in Italy?
Yes. Reception is possible in Italy, but reliability depends on the exact location, building structure, local interference and distance from the transmitter in Mainflingen.
Will a DCF77 clock change automatically between summer and winter time?
Yes, when the clock is receiving the signal correctly. The transmitted time code includes the information required for the seasonal time change.
Why has my radio-controlled clock not changed time automatically?
The clock may not have successfully received and decoded the latest signal. Try moving it away from sources of interference and allow another synchronisation cycle.
Is DCF77 the same as GPS?
No. DCF77 is a terrestrial long-wave radio transmission from Germany. GPS uses satellite signals and is a different system.
Precision without attention
The most interesting aspect of DCF77 is that, when everything works correctly, the technology almost disappears. The clock simply keeps the right time.
